Tarpaulin hot air welding machine of hot air tarpaulin welding machine

Short Description:

Tarpaulin Hot Air Welding Machine Inflatable tarpaulin Hot Air Welding Machine Mainly introduction Hot air welding machine has unique advantage in inflatable products made of membranes structure, which is total different with high frequency welding and hot melt welding technology, the hot air is blew between the sealing surface, under necessary suitable pressure to get perfect welding effect, PVC, TUP material are all available, which are made to water polo, water drum, grass ball,...

Model: KL-300

Heating Power: 3000w

Phase Voltage: 110v/60hz or 220v/50hz

Sealing Speed: 1~18m/mintue

Roller Width: 30mm or customs

Send email to us Download as PDF

Product Detail

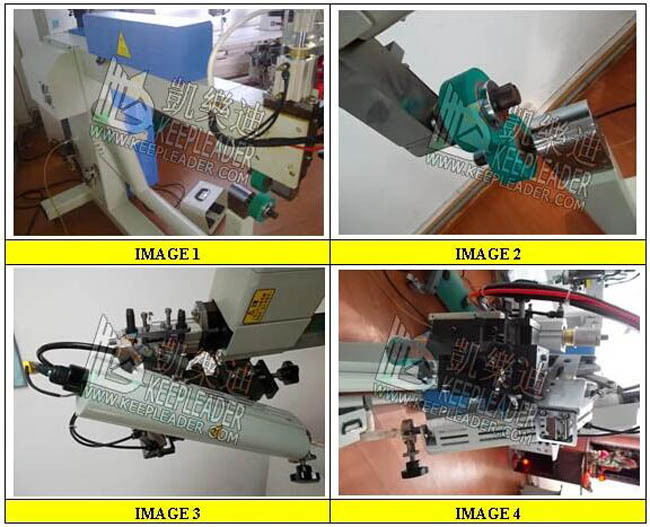

Images

Uses

Tech

Product Tags

Tarpaulin Hot Air Welding Machine

Inflatable tarpaulin Hot Air Welding Machine
Mainly introduction

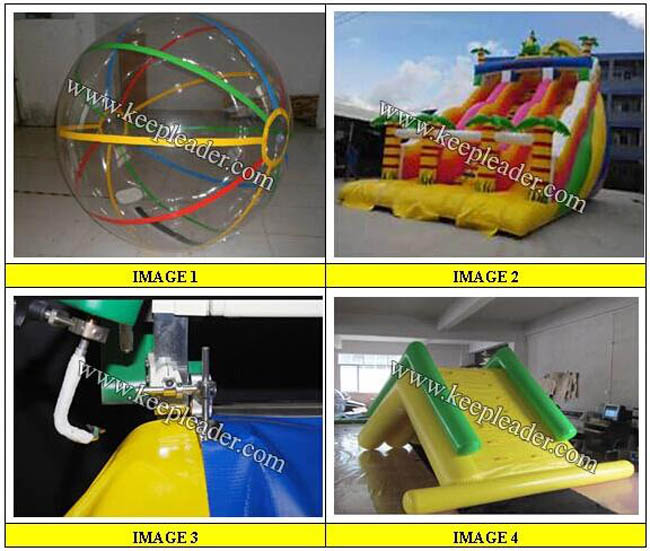

Hot air welding machine has unique advantage in inflatable products made of membranes structure, which is total different with high frequency welding and hot melt welding technology, the hot air is blew between the sealing surface, under necessary suitable pressure to get perfect welding effect, PVC, TUP material are all available, which are made to water polo, water drum, grass ball, inflatable swimming pool, large inflatable tents, inflatable boats, rubber boats and fishing boats and etc
Character
Suitable for any size of inflatable products made of PVC,TPUPLC, Visible to operation, and convenient to reset parameterSelf-control temperature, the tolerance is within 2 degree According to ergonomic design of dual-pedal control Work around the clock, higher production efficiency Special design of heating tube, hot air is filtered without moisture Super-power design of large torque
Parameter
Model	KL-300
Power	3000w
Frequency	AC 220V,50hz
Temperature	0 to 700
Sealing speed	1 to 18m/min
Air pressure	0.35 to 0.5mpa
Pinch roller	30mm(optional)
Diameter of gun mouth	24mm/27mm (optional)
Roller stroke	18mm to 25mm
Overall size	15007201600mm
Net weight	250kgs

MFR: KEEPLEADER™ has modified and designed tarpaulin Hot Air Welding Machine to accommodate our customers’ unique and special requirements, pls contact KEEPLEADER™ for tech assessment
