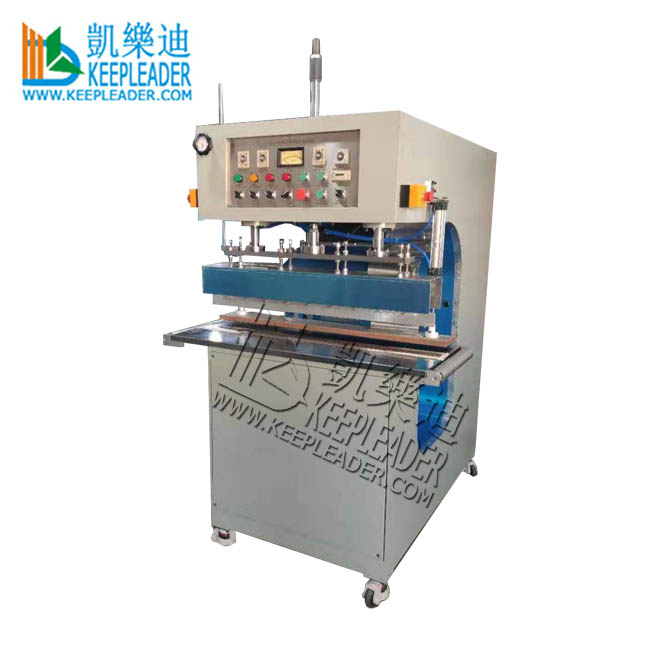

PVC Canvas Sunshade High Frequency Welding Machine

01: Application

Application

PVC Canvas Sunshade High Frequency Welding Machine is abbreviated PVC Canvas Sunshade HF/RF welding, is suitable for welding/Bonding/Sealing/Splicing membrane structure seam made of PVC, PU, TPU tarpaulin, Tent, Canvas, Film to make stretched ceiling, sunshade, awning, sunshade cloth, inflatable pool/boat, truck covers, outdoor sunshades, membrane, oil boom/fence, advertising banners, plastic cistern, film screen, canopy, marquee, tensile fabric cloth, curtain, PVC Canvas Sunshade High Frequency Welding is using high frequency current to generate heat, liquidate (melt) the thermoplastic material together under the pressure to weld the tarpaulin without external heating, in the average pressure after a period of time to cool, the high frequency welding performance is molecular bonding, the welding strength is stronger the original

02: Parameter

Name	PVC Canvas Sunshade High Frequency Welding Machine
Model	KLR-5KWF	KLR-8KWF	KLR-12KWF	KLR-15KWF
HF Power	5kw	8kw	12kw	15kw
Anti-spark	NL-5557 High sensitive anti-spark device
Power Voltage	AC110V/220V/380V 50~60Hz or customize
Frequency	27.12MHz			13.56MHz
Input power	8.5KVA	15KVA	18KVA	25KVA
Rectifier	Silicon Diode
Oscillation	7T85RB	7T69RB	E3130	8T85RB
Pressure	400kgs	500kgs	800kgs	1000kgs
Operation	Pneumatic operation Mode
Electrode gap	150mm
Active horn	150mm
Upper Electrode	505050mm	505060mm	5050800mm	5050900mm
Work table	350*700mm	450*800mm	450*1050mm	400*1150mm
Welding time	0.01~9.99s adjustable
Net weight	700kgs	780kgs	900kgs	1100kgs

03: Character

Compacted Structure, small footprint to save the space

Quick access in maintenance and visible panel for convenient operation

Precision pressure and high frequency Energy control for strong seam jointing

Equipped with HF scale limit meter to control electromagnetic for bonding control

European standard high frequency oscillation square cabinet, more reliable and stable output

High sensitive anti-spark device to protect electrode and material

Laser light for positioning guide at two sides

Equipped with high frequency stabilizer makes the HF interference a lowest level

Manually adjust mold of its horizontal and quadrangular

Length, width and radian of welding area can be adjusted by welding electrode

150mm trough behind the electrode suitable for big size tarpaulin welding

Pressure, Welding time, Dwell time is adjustable according to welding thickness and material

Can be used as freestanding or as a supplement for larger welding system

PVC Canvas Sunshade High Frequency Welding Machine has 5kw~15kw for welding length: 500mm~1000mm

Previous: Membrane Sealing High Frequency Curved Welding Machine for PVC Tent_Tarpaulin_Canvas HF/RF Welder of Truck Cover HF Welding

Next: PET Blister High Frequency Welding And Cutting Machine for PVC PET Blister Package High Frequency Welding of Blister Welding

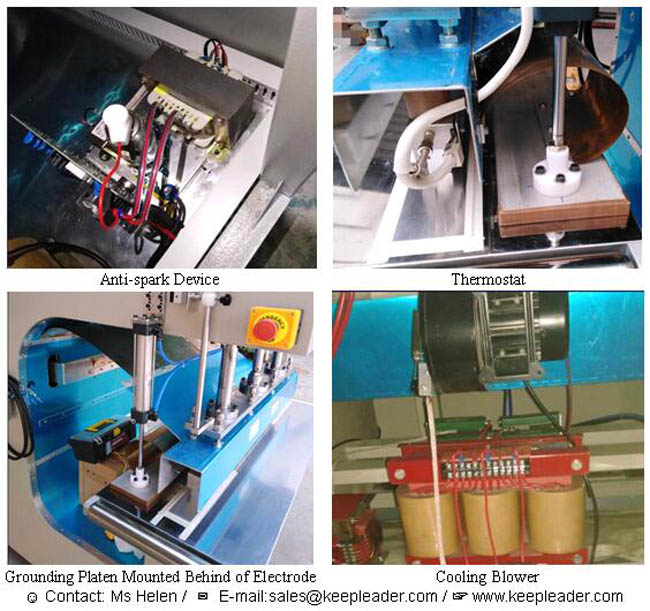

PVC Canvas Sunshade High Frequency Welding Machine has orientation of #1: Protection for safe operation #2: Auxiliary Heat for HF non-melting material #3: Behind mounted Grounding platen for convenient position #4: Cooling Blower for fast and efficient cooling oscillation tube
