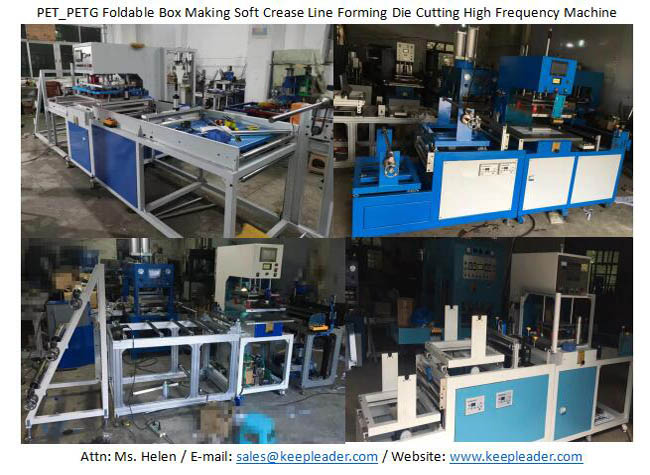

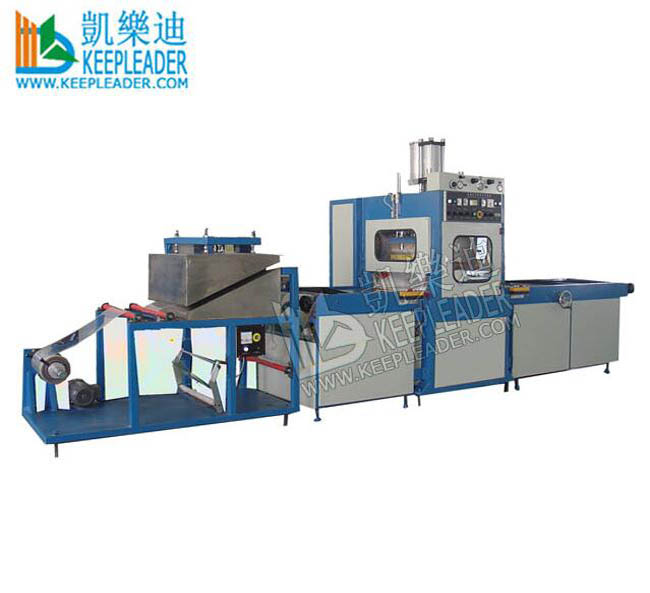

PET_PETG Foldable Box Making Soft Crease Line Forming Die Cutting High Frequency Machine

01:Application

PET_PETG Foldable Box Making Soft Crease Line Forming Die Cutting High Frequency Machine is a fully automatic machine to produce transparent/clean PVC_PET_PP folding Boxes, Rigid thermoplastic film in roll automatic feeding, going through the flattening device firstly, and, comes to the under of high frequency electrode platen, the shaped mold of melting and die cutting presses down against the localized film, after forming folding line and edge cutting-off, the crease-line completed sheet is cut into pieces, one with four to eight boxes can be finished in a circle within maximum pressing size, which depends on the high frequency power output, this automatic production machine also can combine auto flattening device, integrate auto punching system, printing elements into auto production, the plastic film in roll from 1 to 8 standing in the rack exert lamination for making multiple layers bags

02: Parameter

03: Processing procedures

031:Put material roll on the material rack

032:Plastic film in roll go through flattening device firstly

033:Moving clear plastic material under the high frequency electrode platen by auto-feeding system

034:Start high frequency crease line pressing and edge cutting

035:Draw-out completed sheets out of machine by conveyor belt

04:Character

Auto feeding material in rolls, feeding speed is adjustable

Electric preheating and continuous feeding increase productivity

High quality of transformation reduces abrasion to avoid damaging the mould

Photo-electricity induction, feeding-collection

Simultaneously process, precision controlled moving system has lowest deviation

Motor driving material feeding device installed

Roll material, flatten, crease and die cut, sheet cutter are in one machine

Suitable material: PVC, PET,APET,PETG, GAG in roll

G-through Electric Heat flattening device equipped

Compact structure and robust construction

Waste collecting device available on request

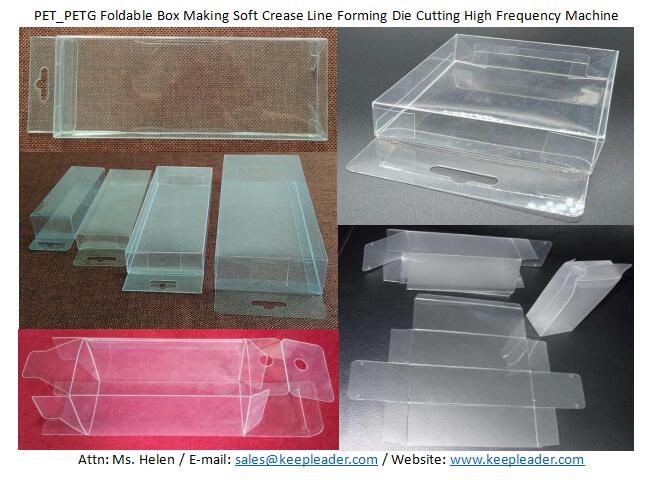

PET_PETG Foldable Box Making Soft Crease Line Forming Die Cutting High Frequency Machine is professional automatic production machine in PVC, PET/PP foldable box making, which is usually used for stationery, plastic box packaging, cosmetic packaging, gift packaging, plastic fishing tackle packaging, hardware tools packaging, confectionery packaging and any other folding box/container packaging process

PET_PETG Foldable Box Making Soft Crease Line Forming Die Cutting High Frequency Machine functions automatic feeding device and conveyor belt system to transfer localized high frequency denting crease line and contour cutting off, plastic film in roll go through flattening device, all process of building a flat sheet after forming crease line is in one machine to save the floor space and improve the productivity at low cost consumption

PET_PETG Foldable Box Making Soft Crease Line Forming Die Cutting High Frequency Machine exerts Soft crease foldable line forming and cutting-off process in making clear packaging box, soft crease box forming, PVC,PET folding box, transparent Foldable plastic box,made of PVC,APET,PETG,GAG and other eco-friendly films

PET_PETG Foldable Box Making Soft Crease Line Forming Die Cutting High Frequency Machine has optional construction both free-standing and Auto feeding production line, plastic film in sheets usually is usually considered manual production, plastic film in roll after backed auto manufacturing, additional functional combination can integrate into automatic model, such as punching device, printing unit and rewinding collection and etc, keepleader is intended for affording a double win collaboration with uncompromising quality and affordable price, don’t hesitate to rich your concentration prior todecision
