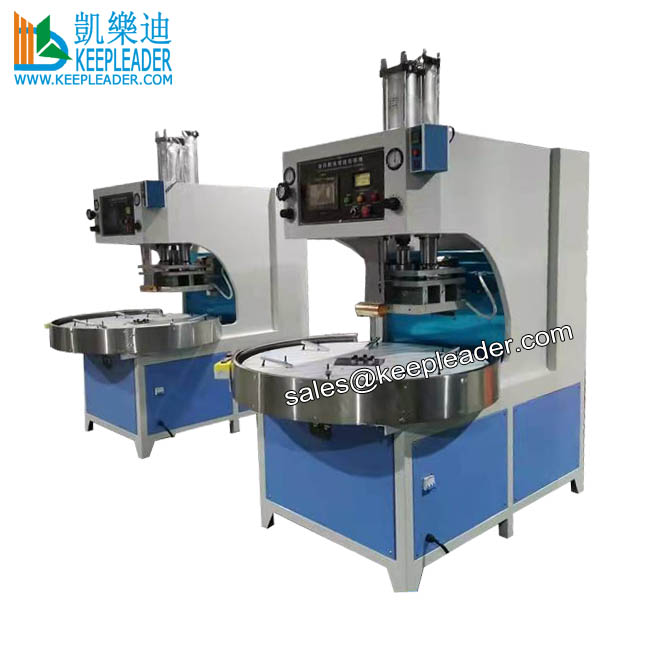

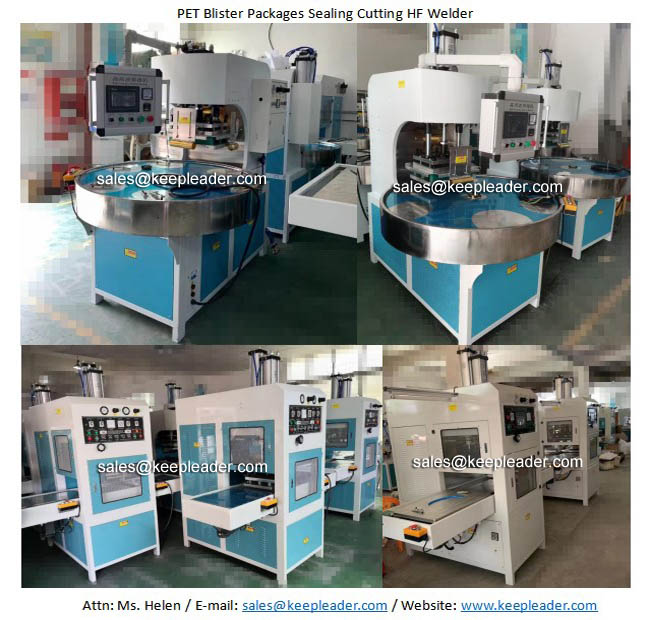

PET Blister Packages Sealing Cutting HF Welder

01: Application

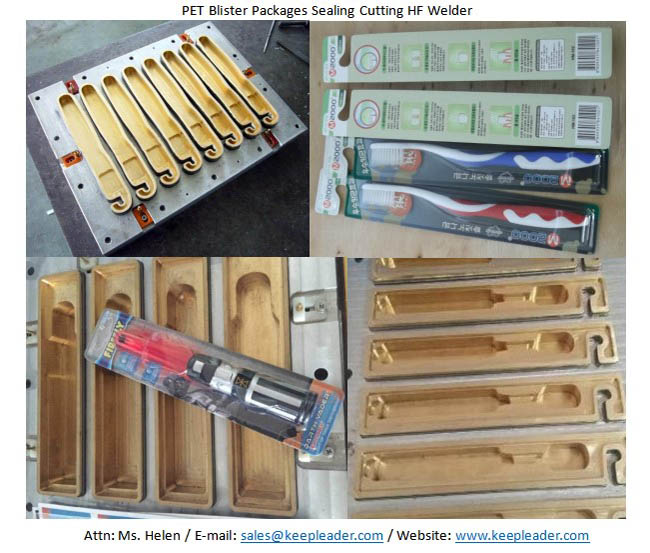

PET Blister Packages Sealing Cutting HF Welder adopts high frequency electromagnetic waves to heat and soften the joint of certain plastic which have chemical dipoles in blister clamshell packaging made of PVC, APET,PETG,GAG,or respectively coated, when a press/die descents to apply pressure on the jointing area of two halves of blister, the high frequency wave are passed through the die and table, the high frequency field causes the molecule to vibrate and generate heat from vibration, the process can be continuous and able to perform localized heating, because of the welding die built in extended edge rim edge, the seal-tear welding and cutting can achieved in blister packaging, such as PET+PET sealing and cutting, PVC+PVC Sealing and cutting, PVC/PET+paper card sealing and cutting, widely used in cosmetic, hardware, electronic products, stationery, to meet different packaging requirement

02: Parameter

03: Salient Characters

Pneumatic HF press operation (hydraulic on request)

High pressure sealing with enhanced ram guidance

Precision up to 0.1mm indexing rotary working table

Programmable memory storage for versatile weld recipes

Automated HF welding cycles with adjustable rotating speed

G frame welded steel structure with integrated HF generator

Universal usage for PVC,PETG,APET,GAG,PU,PET and PLA Films

High precision rotary indexing gear controlled by frequency inverter

Safe voltage 24v is applied to control system and pressure button

Max loading size depends on material and HF power that is customized

Heated upper electrode with thermostat for assisting HF sealing process

Modular construction for easy transportation, installation and trouble-diagnosis

All mechanical parts are fabricated by CNC, and color coating is baked varnish

Fast changeover of sealing molds to suit various sealing size requirement

Automatic unloading device equipped, paper card loading system is available

Max high pressure up to 25tons to achieve PET Blister sealing and cutting in a circle

Robust construction, and contact structure, and customer’s preferred coating appearance

Anti-spark protective system to protect the electrode and material in case of over-current

Components adopt international standard to satisfy sourcing locally for quick replacement

Programmable Logic control with touch screen for readable and quick access in setting and operation

HF welding press can converse to standard heat welding only in flexible production

European-model square oscillator barrel to take more reliable and stable in HF power output

Low loss coaxial oscillator,coherent tuner takes strong output force to shorten welding time

PET Blister Packages Sealing Cutting HF Welder is perfect machine for production of blister and clamshell packages, heated electrode plate with temperature presets gives high accuracy for consistent welding of hard PVC/PET and paper card, this HF welder can be easily converted to a standard heat sealer for applications where HF welding is not necessary or impossible such as PP or PE materials, HF welder is also equipped with special quick change electrode holder, custom built tooling and electrodes are available upon request

PET Blister Packages Sealing Cutting HF Welder is made specifically for production in various blister packaging,this HF welder provides manufactures with high power HF output and custom sealing molds for versatile and reliable sealing, is equipped with special high precision rotary indexing gear controlled by frequency inverter, the operation is based on step by step technology with possibility of multiple welds in one cycle, the HF welder is also equipped with touch screen HMI and programmable PLC operator can easily input multiple weld recipes, its power ranges from 5kw to 15kw for different maximum loading size, automatic weld cycles, optional preheated welding platen, pneumatic or hydraulic driven welding head, electronic motion and weld cycle counter make this HF welder a perfect tool for high end production facility where precision, durability and strength blister packaging process are the key

PET Blister Packages Sealing Cutting HF Welder is a reliable and sturdy systems, specially designed for quick training and easy operation, this HF welder can blister pack a wide range of products by simply changing the tooling

PET Blister Packages Sealing Cutting HF Welder is capable for blister made of PVC (and material contains PVC more than 20%),PET,PETG,APET,GAG,PU,TPU,EVA and cardboard, the blister packages often used in the fields of toothbrush, battery, stationery, food, medical instruments,toys, small hardware, electronics parts and finished products, automotive parts, household applications, cosmetic parts, healthcare, medical products, injector, solid plastic, clipper, flashlight, spark ignition plug,lipstick,coat hook, cleaning balls, razors,correction fluid, pencil and the like

PET Blister Packages Sealing Cutting HF Welder always takes years of dependable performance with an absolute minimal maintenance requirement, it is competitively priced, marking them ideal for small enterprises and low volume productions, perfectly complementing our blister/clamshell packaging series of HF welders, if you herein cannot find your concerns, which are very important for your individual production, don’t hesitate to consult them with our sales prior to our offer, all of our promised construction will be definitely accomplished
