PET Blister High Frequency Welding And Cutting Machine for PVC PET Blister Package High Frequency Welding of Blister Welding

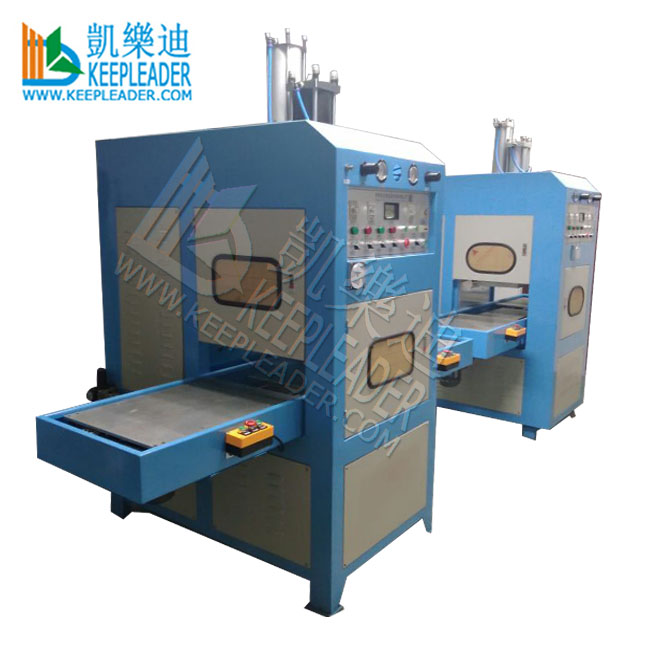

PET Blister High Frequency Welding And Cutting Machine
| Mainly application | |

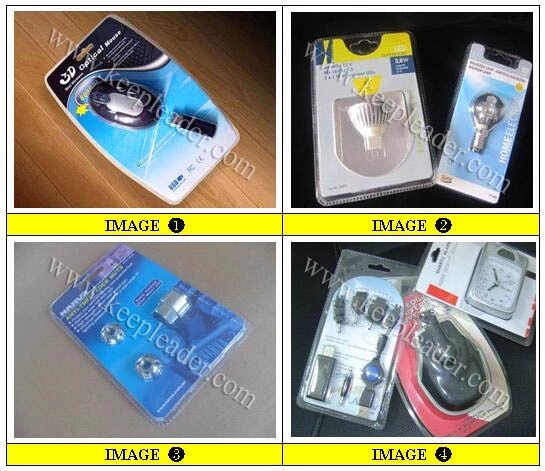

| Applied for double sides blister packaging for APET, PETG, GAG, PVC, welding and cutting of soft crease clear box making, toothbrush blister packaging, mobile clearer, belt, watchband, featured in automatic welding and cutting of blister packaging and paper card. | |
| Character | |
| Wide using in environmental protection plastic packing ,toothbrush packing,
environmental production dress-glue products with APET, PETG, GAG clear plastic sheet or printing plastic sheet, Equally can process any materials needing welding and cutting simultaneously. double-way automatic slipway, back-forth or continuous delivering the mould, Accurate-orientation, error±20um. Adjustable cutting pressure 1-50 ton, stable and reliable in output, firm in structure. Adopting high sensitive anti-sparkle device NL5557 to avoid damaging the mould efficiency. Operation mode: oil pneumatic or pure-pneumatic PET Blister High Frequency Welding And Cutting Machine included one set of creasing and cutting mold/die/tooling |
|
| Technique specifications | |
| Model | KLR-8000WT |
| Power | 8000W |
| Voltage | 220V/380V 50/60HZ |
| Frequency | 27.12MHZ |
| Input power | 15KVA |
| Rectifier | SILICON DIODE |
| Oscillation tube | 7T69RB |
| Max pressure | 30T |
| Gap between electrodes | 200MM |
| active horn | 150MM |
| Size of upper electrode | 350*500 |
| Size of lower electrode | 350*500 |
| Range of temperature | 30~200℃ Adjustable |
| Welding time | 0~10S Adjustable |
| Productivity | Equal or less 5000 times/8h |
| Net weight | 1.6T |
| Overall dimension | 1920*1200*2060 |
MFR: KEEPLEADER™ have modified and designed model for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details, for PET Blister High Frequency Welding And Cutting Machine, pls tell us you material and its maximum crasing size
PET Blister High Frequency Welding And Cutting Machine Has customized creasing size, which depends on 5kw, 8kw, 10kw to 25kw,we also can mount automatic feeding stand for its auto production
After purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice
01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client in new technical information of machines’ design, character, application, operation, maintenance,
and related, KEEPLEADER™ also welcome our clients feed back the machines’ working condition that can get one to one service
02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADER™, we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair, KEEPLEADER™ will provide a new parts to replace the defect
03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video
04: KEEPLEADER™ can go to oversea for on-site training
05: KEEPLEADER™ can provide electric diagram if in need
06: PET Blister High Frequency Welding And Cutting Machine has one year warranty, we provide free parts for replacement and life-long technical support by paper solution and drawing for improvement and modification
