High Frequency Plastic Tents Welding Machine of Tarpaulin_Canvas_Marquee Awning Cover_PVC_PE Coated Fabric Stationary RF Welder

Short Description:

High Frequency Plastic Tents Welding Machine Mainly application of Awning/tarpaulin/tent high frequency welding High Frequency Plastic Tents Welding Machine applied for tarpaulin, sun shading canvas, painting canvas, film curtain, canopy,awing,truck cover, car tent,stretch ceiling, sunshades and other around of this kind of membrane structure material welding or sealing Character of tarpaulin/TENT/Inflatable high frequency welding/welder High Q value oscillation tubethe welding lengt...

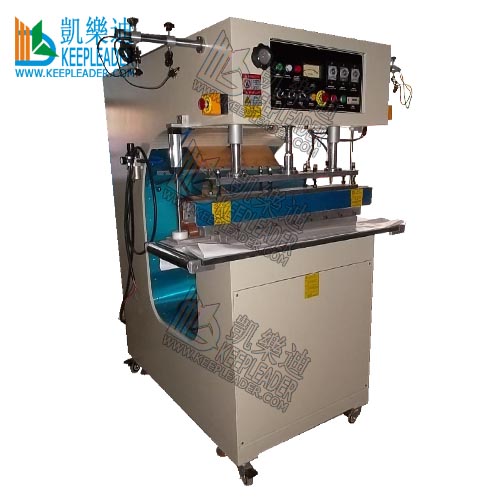

Name: High Frequency Plastic Tents Welding Machine

Model: KLR-10KW-SN

H.F Power Output: 8000w

Upper Electrode: 100*1000mm

Electrode Excursion : 100mm

Weight : 800kgs

Send email to us Download as PDF

Product Detail

Details

Uses

Contact

Product Tags

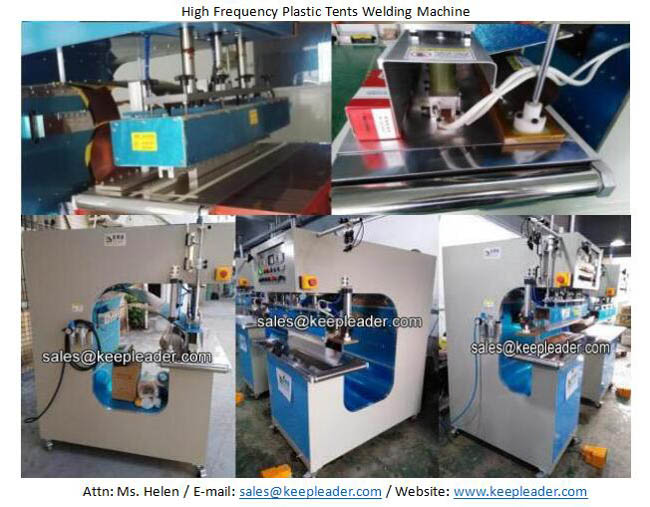

High Frequency Plastic Tents Welding Machine

Mainly application of Awning/tarpaulin/tent high frequency welding
High Frequency Plastic Tents Welding Machine applied for tarpaulin, sun shading canvas, painting canvas, film curtain, canopy,awing,truck cover, car tent,stretch ceiling, sunshades and other around of this kind of membrane structure material welding or sealing
Character of tarpaulin/TENT/Inflatable high frequency welding/welder
High Q value oscillation tubethe welding length is optional, maximum length:2000*25mm for 25kwThe machine is G shape, have longer throat to hold the materialHigh sensitive anti-sparkle device NL5557 to avoid damaging the mould.High quality imported apparatus European-model high frequency vibration box, more reliable and stable in output Laser position device for precision counterpoint Have boosting roller at two side for easy feeding materail Mounted five caster with four brakes Automatic thermostat to keep the temperature at best performance in welding High precision high frequency knob for visible control Low voltage control panel for safty purpose Anodized mould and tooling for longer life-span Top amounted cylinder for vertical pressing, which is more uniform pressure Foot pedal control and button control is optional Over current protection circuit to avoid burning the oscillation tube Power ranges 4kw up to 25kw for various welding length
Technique specifications of tarpaulin high frequency welding
Model	KLR-10KW-SN
Power	10kW
Power supply	220V/380V 50/60HZ
Frequency	27.12MHZ
Input power	20KVA
Rectifier	SILICON DIODE
Oscillation tube	E3069RB
Max pressure	600kg
Gap of electrodes	120MM
Moving distance of active horn	100MM
Size of upper electrode	100*1000MM
Size of down electrode	120*1200MM
Welding time	0~10S Adjustable
Net weight	800KG
Overall dimension	Customized

Standard equipment:

Name	Origin	Brand
Air driven components	Taiwan	Airtac
AC contactor	Korean	LG
Relay	Japan	Omron
Electron Tube	Japan	Toshiba
Time controller	Taiwan	CKC

please contact KEEPLEADER™ for more information and technical assistance

Note:
Please tell us following information intended for High Frequency Plastic Tents Welding Machine:
❶ The material and definite size of the product;
❷ The maximum welding length in maximum
❸ The features you preferred on this machine

High Frequency Plastic Tents Welding Machine is the stationary RF welder,which is the industry’s most versatile radio frequency welder available on the market, keepleader was designed for the production of tarpaulins, tents, truck tarps, high speed doors and any other flexible polyvinyl chloride (PVC) or Polyurethanes(PU) product, with enhanced features such as, a deep material-trough for better material handling, a infrared scanning system to line up the laminated layers in positioning process,your production will be even more efficient and reliable

Previous: PVC Tent High Frequency Welding Machine for Tarpaulin_Canvas_Truck Cover_Membrane Structure Military Tents Sealing HF/RF Welders

Next: Tents Making PVC Welding Radio Frequency Seam Sealing Machine of Outdoor_Pagoda_Camping_Car Trailer_Safari_Relief Tent HF Welder

High Frequency Plastic Tents Welding Machine has salient features in #1: H.F power output from 5kw to 25kw #2:each material positioning with deep trough behind electrode #3: Infrared light guide projectors to assist on positioning process #4: angular and special shaped upper electrode is available #5:built-in smooth glide wheels for easy movement in-around welded fabric, or relocation to a desired place

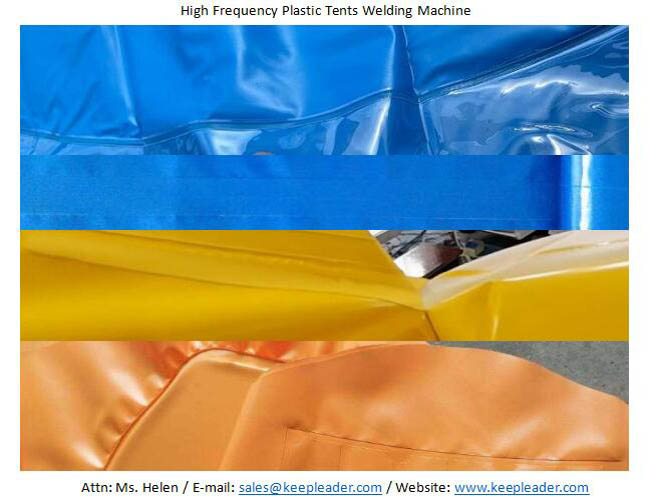

High Frequency Plastic Tents Welding Machine has versatile applications in field of #1: small and large format technical textiles PVC or PU coated fabric #2: tensile structures, tents, shade systems, truck covers and side curtains #3: swimming pool liners and covers, flood dams and water tanks #4:airport hangars,portable storage structures #5:containment pools, oil booms and ground liners #6: advertising signs and large format billboards

High Frequency Plastic Tents Welding Machine are processes that have long been used to create high integrity seams on a variety of flexible products, although the sealing processes are different in execution, they have relatively the same result, the bonding of polymer films on a molecular level, but, the custom-built interchangeable electrode bar or platen is necessary for different processes in size, shape, profile and pattern, it isn’t avoidable to examine your application prior to offer, our sales are always ready for listening and working with you to produce a affordable, reliable dielectric welding solution
