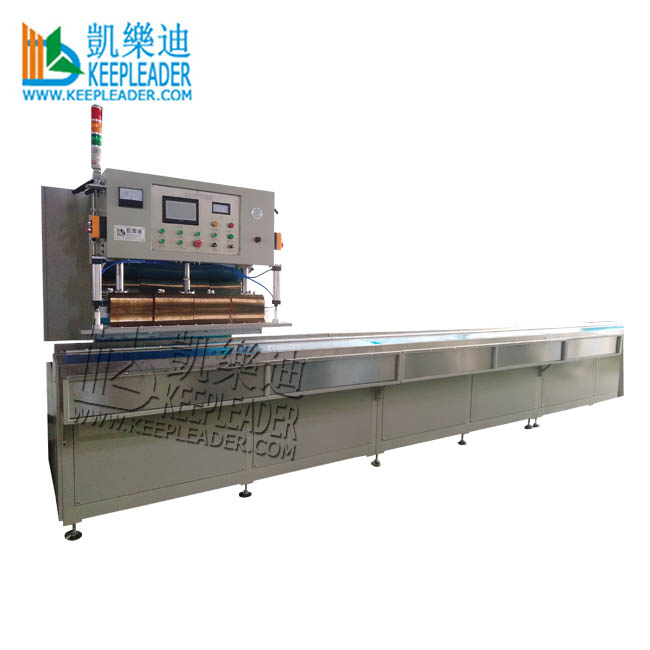

Auto Steps High Frequency Car Curtain Welding Machine

01: Application

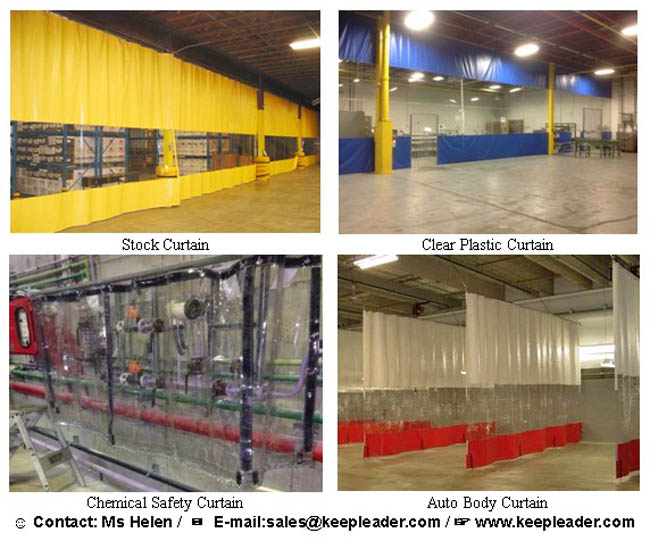

Auto Steps High Frequency Car Curtain Welding Machine is professional HF welder of large format structural membranes welding, like pool-lines, oil-booms, water cistern, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth, tent of truck, agricultural canvas, canopy, swimming pool covers, and other PVC/PU technical textiles, large PVC canvas, digesters, fabric, computer advertising, printing film cloth, the membrane structure, large format technical textiles, large cover for trucks and boats, membrane curtains for trucks, large swimming pool covers, temporary shelters, and other thermoplastic membrane structure made of shielding shaped products

02: Parameter

03: Character

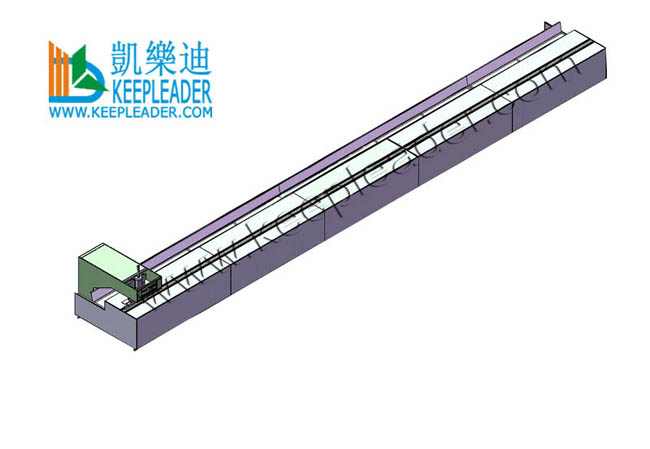

Customized length of movable bench, zipper guides is equipped

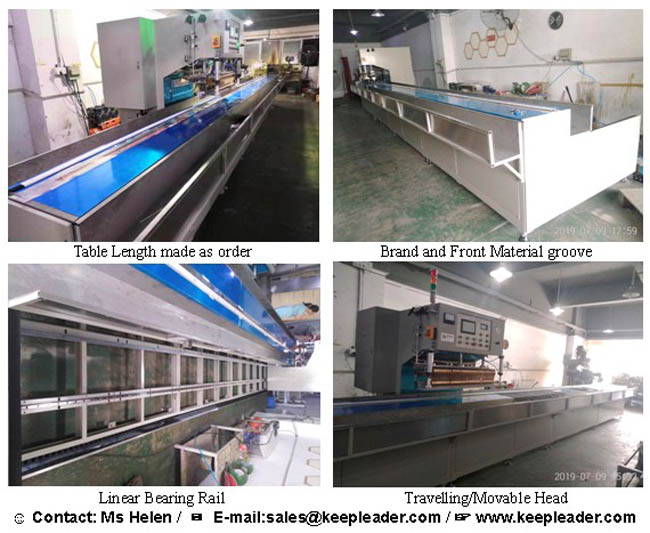

Linear bearing driven is servo motor controlled for precision and smart travelling

Touch screen programmable HMI / PLC and operation panel, two operation system

European-model square high frequency vibration box

Continuous HF welding for single line, double lines, even for curve lines

Movable welding head also can be used as freestanding

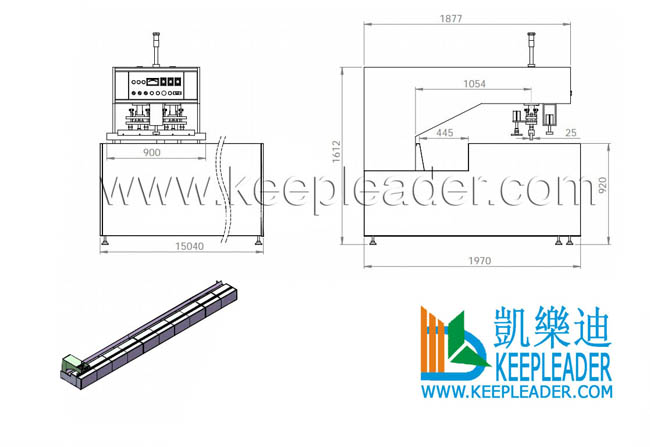

Customized working bench dimension, electrode holder dimensions and tooling

Laser guide projector generate two beaming lines to guide welding width

C-frame and G frame welded steel structure with integrated HF generator

Automatic high frequency turning technology

Vacuum bench and temperature thermostat are available

The most important factors influence High Frequency Car Curtain Welding Machine : #1: electrical power #2: pressure applied #3: welding time #4: cooling time, Finding the optimal process parameters will depends on your specific equipment, the materials involve and the specific geometries including thickness and area to be welded, achieving optimal results is often an experimental process guided by experience, as a guiding rule, the thicker material and focus on short welding times you need, the stronger electrical power you need

Auto Steps High Frequency Car Curtain Welding Machine has an interchangeable electrode, or die, machined in the shape of the part to be welded, is used to apply power to the workpiece,so, the electrode, electrode holder, table length, material groove all made to your order

Auto Steps High Frequency Car Curtain Welding Machine Can weld thermoplastic membranes of PET, PETG, PVC, TPU, LDPE/EVA and Open Celled Polyurethanes

Auto Steps High Frequency Car Curtain Welding Machine can have customized factors of #1: Electrode #2: Holder #3: Table #4: HF power #5: Auxiliary Functions
