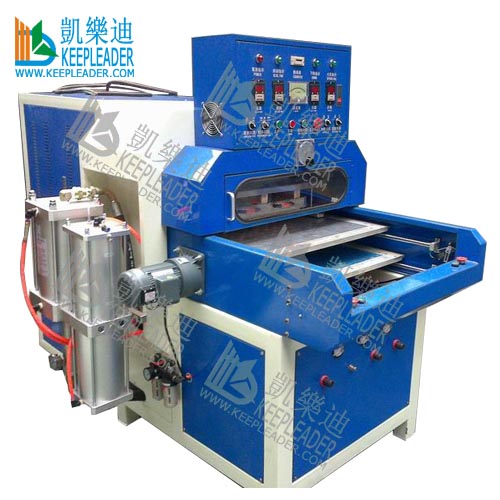

High Frequency Welding Machine For Sport Shoe Footwear
| Application | |||
| High Frequency Welding Machine For Sport Shoe Footwear is mainly used for sports shoe cover, insoles molding, footwear trademark, purses, nameplate in process of welding, cutting and embossing, can also be used for APET, PETG, PVC, PP sheet soft creasing to make plastic fold box and blister, clamshell sealing and edge trimming production | |||
| Character | |||
| Unilateral, double sliding table design, one person is ok in its operationWith hydraulic booster device, be qualified for seal, cutting, cutting, forming and embossing in one machineNL-5557 anti-sparkle device to protect high frequency system and mold in safe productionEuropean standard coaxial high frequency oscillation system and circuit protection equipped, when the current is higher that its normal rate, the machine can cut off automatically | |||
| Parameter | |||
| Model | KLR-8KWTS | KLR-12KWTS | KLR-15KWTS |
| Power | 8kw | 12kw | 15kw |
| Frequency | 27.12MHZ | ||
| Input power | 15kva | 18kva | 25kva |
| Oscillation | 7T69RB | 3130RB | 8T85RB |
| Pressure | 15000kg | 20000kg | 25000kg |
| Travel distance | 100mm | ||
| Upper | 350*450mm | 350*500mm | 400*500mm |
| Down electrode | 350*450mm | 350*500mm | 400*500mm |
| Pressing mode | Hydraulic+ Pneumatic | ||
| Rectifier | Silicon Diode | ||
| Power supply | 50/60HZ AC380V 3P | ||
| Welding time | 0—10s | ||
| Productivity | 360pc / h | ||
| Net weight | 1500kgs | ||
| Overall size | 1200*1200*2200 | ||
MFR: KEEPLEADER™ have modified and designed High Frequency Welding Machine For Sport Shoe Footwear for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details
Standard equipment:
| Name | Origin | Brand |
| Air driven components | Taiwan | Airtac |
| AC contactor | Korean | LG |
| Relay | Japan | Omron |
| Electron Tube | Japan | Toshiba |
| Time controller | Taiwan | CKC |
pls contact KEEPLEADER™ for more info and tech assistance
KEEPLEADER™ has designed and modified machine to accommodate our customers’ unique and special requirements
and advise us under info for High Frequency Welding Machine For Sport Shoe Footwear
01: the picture of your footwear
02: its material and its max size

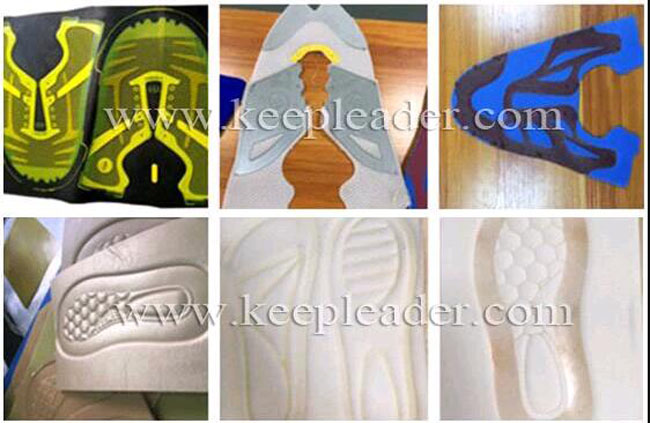

High Frequency Welding Machine For Sport Shoe Footwear is used for 3D PVC/TPU/PU Embossed Label/Badge/Sport Shoe Upper/Shoe Insole Welding/Embossing/Fusing/Making
