Clear Cylinder Tube Lids Cover Making Machine For PVC PET Cylinder Tube Lids Cover Gluing of Plastic Cylinder Tube Lids Pasting

Short Description:

Clear Cylinder Tube Lids Cover Making Machine is used for PVC,PET cylinder tube cover gluing, Cover is made of Disk glued in the edge formed Ring  01: Parameter of Clear Cylinder Tube Lids Cover Making Machine Model KLY-2040ET Power 3000w Power Supply 110v-240v, 50hz/60hz Workable size Diameter: 40~200mm/ Length:10~400mm Material thickness 0.15~0.6mm Air pressure 0.6mpa 350L/min Gluing speed 800~1000pcs/hour Precision 0.1mm Controlling PLC Driving system Eight-station div...


  • Model: KLY-2040ET
  • Output Power: 3000w
  • Material Thickness: 0.15~0.6mm
  • Productivity: 800~1000 pcs/h
  • Weight: 500kgs
  • Product Detail


    Use

    Serve

    Product Tags

    Clear Cylinder Tube Lids Cover Making Machine is used for PVC,PET cylinder tube cover gluing, Cover is made of Disk glued in the edge formed Ring

     01: Parameter of Clear Cylinder Tube Lids Cover Making Machine

    Model KLY-2040ET
    Power 3000w
    Power Supply 110v-240v, 50hz/60hz
    Workable size Diameter: 40~200mm/ Length:10~400mm
    Material thickness 0.15~0.6mm
    Air pressure 0.6mpa 350L/min
    Gluing speed 800~1000pcs/hour
    Precision 0.1mm
    Controlling PLC
    Driving system Eight-station divider
    Overall size 900*1300*1780mm
    Net weight 500kgs

    02: Character

    Automatic glue the bottom of PVC, PET cylindrical box

    Rotary round table continuous positioning

    The size of cylindrical box is changeable

    PLC operation system is visible and convenient

    Labor and cost save

    Can combined with automatic production line

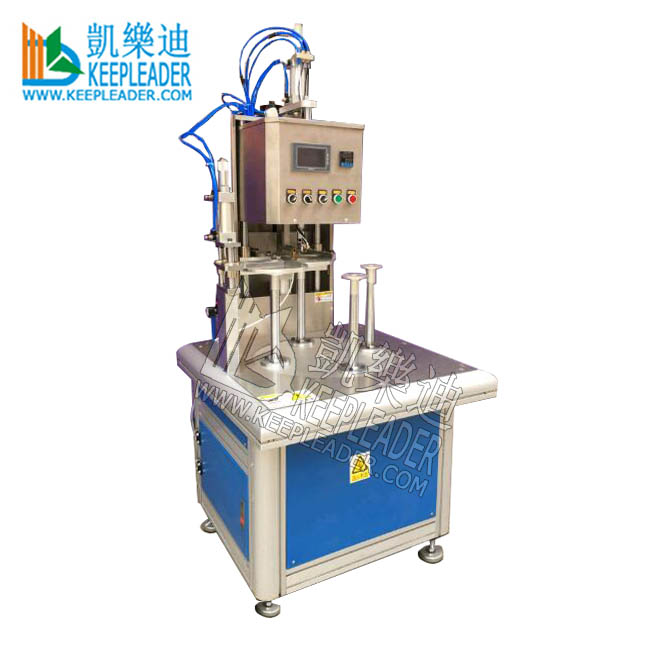

    Clear Cylinder Tube Lids Cover Making Machine

    https://www.hfwelds.com/products/pvc_pet-cylinder-tube-making/


  • Previous:
  • Next:

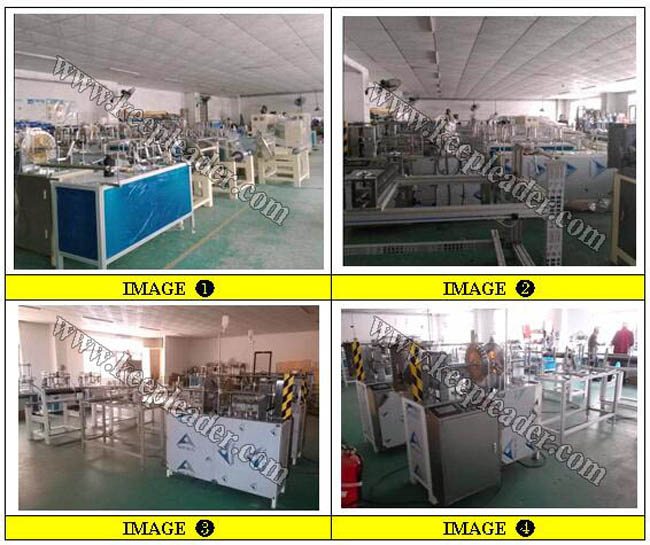

  • Clear Cylinder Tube Lids Cover Making Machine has stocked and sample displayed, welcome your visit to check its performance

    https://www.hfwelds.com/products/pvc_pet-cylinder-tube-making/

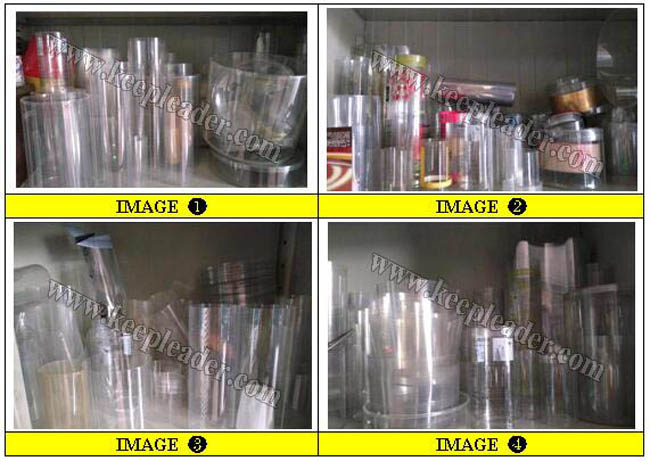

    Clear Cylinder Tube Lids Cover Making Machine is cost-save way to make the cylinder tube cover (Lid +bottom)

    https://www.hfwelds.com/products/pvc_pet-cylinder-tube-making/

    Clear Cylinder Tube Lids Cover Making Machine For PVC PET Cylinder Tube Lids Cover Gluing

    After purchasing at KEEPLEADER™ is first step of our after-service, all of machines at KEEPLEADER™ has one year guarantee, we provide free samples for defected parts to do replacement except for human damage, under information for your notice

    01: KEEPLEADER™ always posts the new technical file in our homepage that can help our client in new technical information of machines’ design, character, application, operation, maintenance,

    and related, KEEPLEADER™ also welcome our clients feed back the machines’ working condition that can get one to one service

    02: If the machine you purchased has any defects, please contact sales representative at KEEPLEADER™, we will assign our experienced engineer analyze your case and provide technical support, in case of damaged parts that cannot repair, KEEPLEADER™ will provide a new parts to replace the defect

    03: For any replacement and maintenance, KEEPLEADER™ has user manual and training video

    04: KEEPLEADER™ can go to oversea for on-site training

    05: KEEPLEADER™ can provide electric diagram if in need

    06: Train video+User manual+Video technical support+ on line support
